Strapi Plugin IOSocket.IO Integration for Strapi v5

Quick Start ​

Install the plugin:

npm install @strapi-community/plugin-io

Enable in config/plugins.js:

module.exports = {
  'io': {
    enabled: true,
    config: {
      contentTypes: ['api::article.article'],
      socket: {
        serverOptions: {
          cors: {
            origin: 'http://localhost:3000',
            methods: ['GET', 'POST']
          }
        }
      }
    }
  }
};

Connect from your frontend:

import { io } from 'socket.io-client';

const socket = io('http://localhost:1337', {
  auth: {
    strategy: 'jwt',
    token: 'your-jwt-token'
  }
});

socket.on('article:create', (data) => {
  console.log('New article:', data);
});

What's New in v5.0 ​

Strapi v5 Support - Built for the latest Strapi version with full compatibility

Migration Made Easy - See migration guide - most projects migrate in under 1 hour!

Admin Dashboard - Visual configuration with live monitoring widget on home page

Advanced Security - Rate limiting, IP whitelisting, enhanced authentication

Performance Optimizations - 90% reduction in DB queries, improved caching, parallel processing

Enhanced API - 7 helper functions for common tasks, improved TypeScript definitions

Better Documentation - Comprehensive guides, real-world examples, migration path

Core Features ​

🎯 Automatic Content Type Events ​

Enable any content type for real-time updates:

// Backend: config/plugins.js
contentTypes: [
  'api::article.article',
  'api::comment.comment',
  {
    uid: 'api::product.product',
    actions: ['create', 'update']
  }
]

// Frontend: Automatic events
socket.on('article:create', (article) => { /* ... */ });
socket.on('article:update', (article) => { /* ... */ });
socket.on('article:delete', (article) => { /* ... */ });

🔐 Role-Based Access Control ​

Permissions are automatically enforced based on user roles:

// Public users only receive events they have permission to see
// Authenticated users receive events based on their role
// API tokens work with their configured permissions

📊 Real-Time Monitoring ​

View live statistics in your admin panel:

• 🟢 Active connections
• 💬 Active rooms
• ⚡ Events per second
• 📈 Total events processed

🚀 Helper Functions ​

Seven utility functions for common tasks:

// Join/leave rooms
strapi.$io.joinRoom(socketId, 'premium-users');
strapi.$io.leaveRoom(socketId, 'premium-users');

// Private messages
strapi.$io.sendPrivateMessage(socketId, 'notification', data);

// Broadcast to all except sender
strapi.$io.broadcast(socketId, 'user-joined', data);

// Namespace management
strapi.$io.emitToNamespace('admin', 'dashboard:update', stats);

// Room info
const sockets = await strapi.$io.getSocketsInRoom('chat-room');

// Disconnect
strapi.$io.disconnectSocket(socketId, 'Kicked by admin');

Use Cases ​

Real-Time Blog ​

Automatically notify readers when new articles are published

Live Chat ​

Build a chat system with rooms, private messages, and typing indicators

E-Commerce ​

Update product availability, prices, and inventory in real-time

Collaborative Tools ​

Synchronize state across multiple users editing the same document

Dashboards ​

Push live metrics, alerts, and system status to admin panels

Gaming ​

Handle player connections, game state, and multiplayer interactions

IoT Integration ​

Receive and broadcast sensor data and device status updates

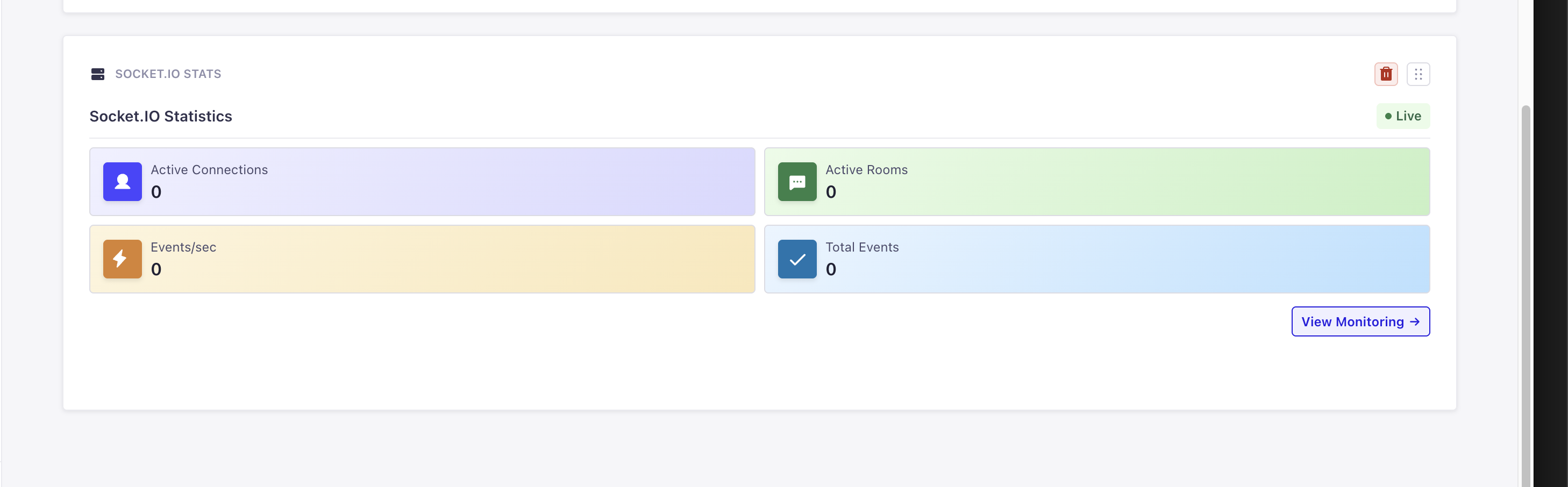

Dashboard Widget ​

The plugin includes a live statistics widget on your Strapi admin home page:

📊 Widget Features:

• 🟢 Live connection status with pulsing indicator
• 👥 Active connections count
• 💬 Active rooms count
• ⚡ Events per second
• 📈 Total events processed
• 🔄 Auto-updates every 5 seconds

See it in action: Navigate to your admin home page after installing the plugin!

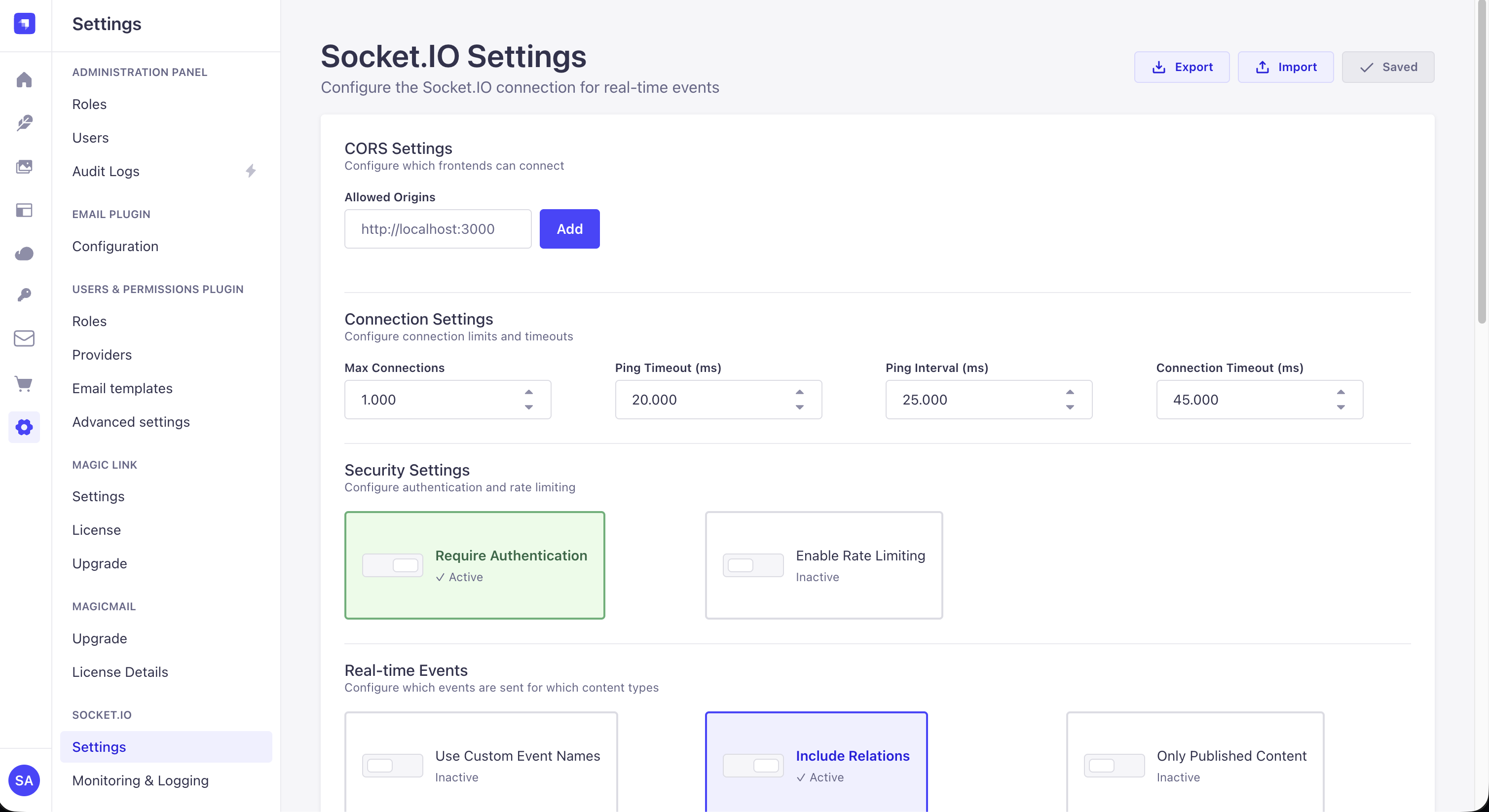

Visual Configuration ​

Configure everything visually in the admin panel:

Settings → Socket.IO gives you full control over:

• CORS origins
• Content type monitoring
• Role-based permissions
• Security settings
• Rate limiting

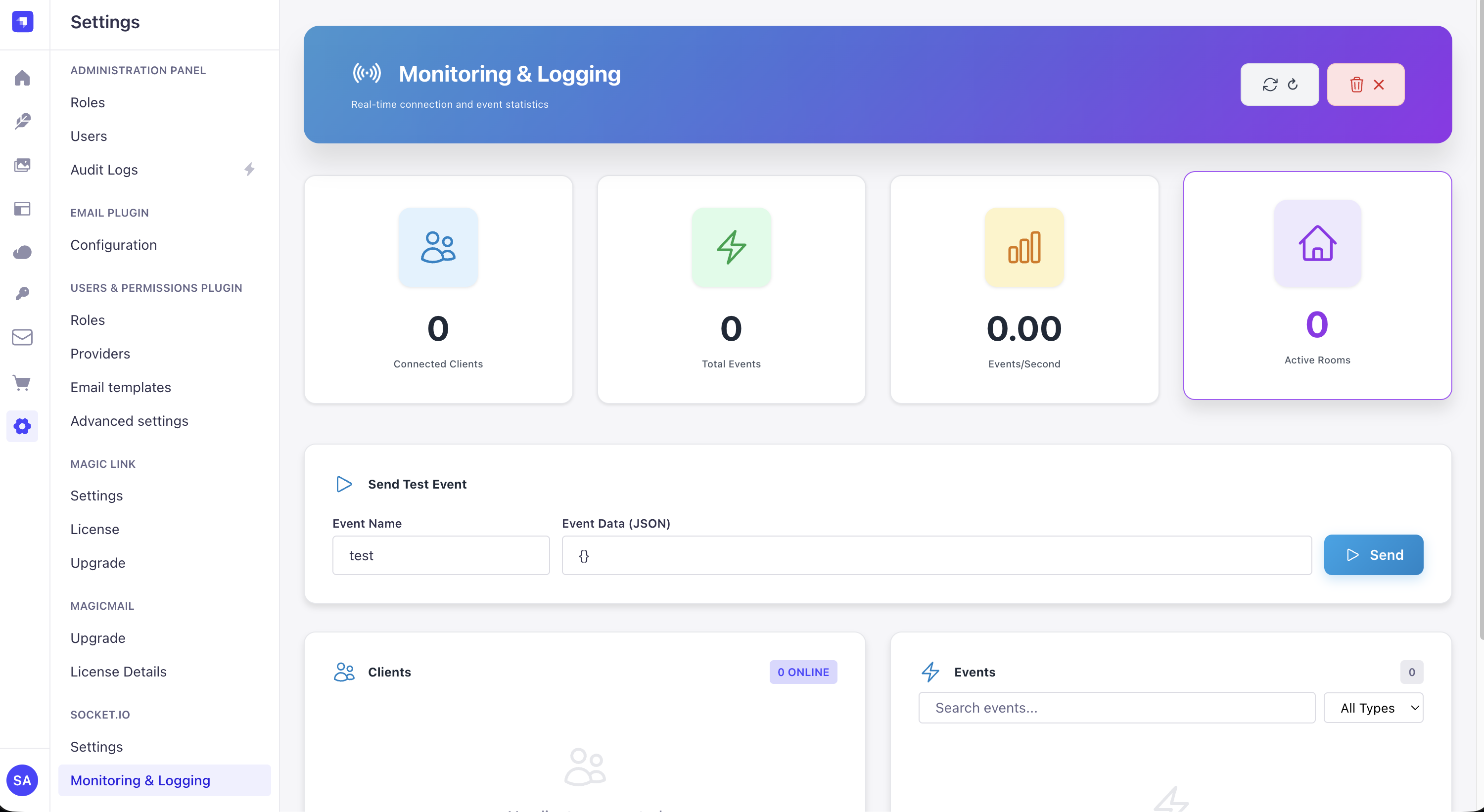

Real-time monitoring shows:

• Active connections with user details
• Event logs
• Performance metrics
• Connection history

Browser Support ​

• ✅ Chrome/Edge 90+
• ✅ Firefox 88+
• ✅ Safari 14+
• ✅ iOS Safari 14+
• ✅ Android Chrome 90+

Requirements ​

• Node.js 18.0.0 - 22.x
• Strapi v5.x
• Socket.IO 4.x

Community & Support ​

• 📖 Full Documentation
• 🐛 Report Issues
• 💬 Discussions
• ⭐ Star on GitHub

Next Steps ​

• View Examples - Learn common use cases
• API Reference - Explore all available methods
• Configuration - Advanced setup options
• Dashboard Widget - Learn about the monitoring widget
• Migration Guide - Upgrade from Strapi v4
